50Hz 40kw Open Diesel Generator Set Deepsea 6120 4BTAA Super Silent

Ask Lasest Price
Brand Name :	Junvoch
Model Number :	JVH50
Certification :	ISO CE
Price :	1000usd-5000usd
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5000 set per month

Add to Cart

Product Details
Company Profile

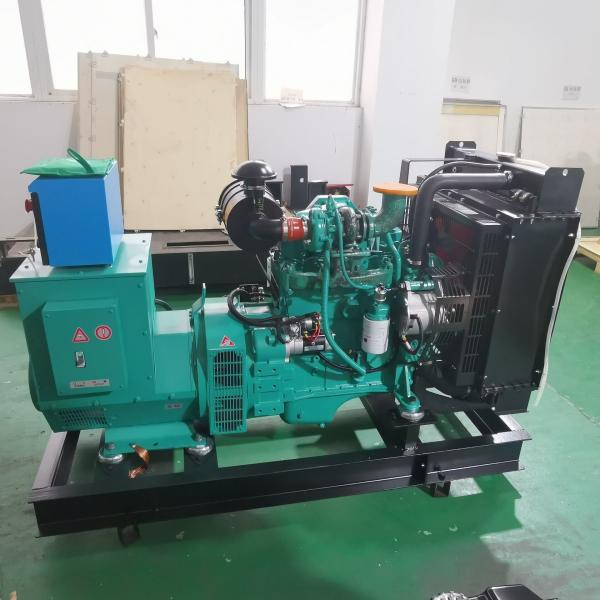

50Hz 40kw Open Diesel Generator Set Deepsea 6120 4BTAA Super Silent

40Kw 50kw Diesel Generator Set With 4BTAA Cummins Engine Open Gen set

Hubei JVH Industrial & Trade Co.,Ltd has focused on R&D and manufacturing of generator sets & alternators since it founding in 2014, and has accumulated rich manufacturing and service experience in this field.The manufacture base is located in bailang Economic Development Zone with an area of 5000 square meters,Now our generator sets have been exported to all over the world and have been widely recognized by customers with high reputation.

40Kw 50kw Diesel Generator Set With 4BTAA Cummins Engine Open Genset

General Performance Data

Prime Power	50KVA/40KW	Engine	Brand	Cummins
Stand by Power	55KVA/44KW	Engine	Model	4BTA3.9-G2
Frequency/Speed	50Hz/1500rpm	Control module	Deepsea 6120
Rated Power Factor(cos(p)	0.8	Rated Current		72A
Standard Voltage	230V/400V	Capacity or Breaker		100A
Phases	3	Starting Voltage		DC24V

Fuel consumption			Dimensions and Weights
Rated output	Fuel consumption rate		Type	Open	Silent
100%Standby	212g/KW.h	14. IL/h	Length(m m)	1950	2350
100%Prime	213g/KW.h	12.91/h	Width(mm)	750	1000
75%Prime	219g/KW.h	10.1L/h	Height(m m)	1350	1540
50%Prime	2 30g/KW.h	7.0 L/h	Weight(kg)	800	1250
25%Prime	277g/KW.h	4.3L/h	Base fuel tank volume (L)	125	125

Engine specification

Basic parameter		Air induction system
Manufactu rer	dongfeng Cummins	Maximum allowable intake air restriction
Model	4BTA3.9-G2	—with clean filter element	3.7kPa
No. of cylinder	4	—with dirty filter element	6.2kPa
Type	4 cycle, Vertical In-line	Intake Air alarm temperature	82°C
Prime Power	50kw/67HP	Exhaust system
Standby Power	55kw /74HP	Max. allowable back pressure	10kPa
Induction system	Turbocharged, cold water in the air	Standard exhaust pipe diameter	75mm
Governor	Electronic speed	Cooling system
Bore x Stroke	102x120mm	Coolant capacity
Displacement	3.9 L	— Engine only	7.2L
Compression ratio	18.0:1	—Total system	20.8 L
Oil Capacity (Total)	10.9L	—With heat exchanger	13.6L
Coolant Capacity(Engine only)	72 L	Standard thermostat(modulating) range	82-95 °C
Cranking Motor Voltage	DC24V	Minimum cap pressure	69kPa
Fuel System		Max. allowable top tank temerature for stand by/prime power	104/100 °C
Type Injection system	BYCType A inline pump
Min. Allowable flow of fuel to fuel pump	14.1 L/h	Electric system
Lubrication system		Min. recommended battery capacity (24V)
Oil Pressure		—10°C(50°F) & above- 0°F CCA	312
—Idle speed	207kPa	…0°C(32°F) to 10°C(50°F)- 0°F CCA	312
— Rated speed	345kPa	—18°C(0°F) to 0°C(32°F)- 0°F CCA	312
Max. allowable oil ternperature	121°C	Max. allowable resistance or Starting circuit	0.002ohm
Offset sump oil capacity: low/high 9.5 /8.5L		Sta rte r(h e ave, Ano de)	DC24V
Total system capacity	10.9L	Battery recharge system, negative ground	40ampere

50Hz 40kw Open Diesel Generator Set Deepsea 6120 4BTAA Super Silent
