6CTAA8.3-G2 Engine Generator Electric 180 Kw Super Silent Diesel Generator Set Genset 225 Kva

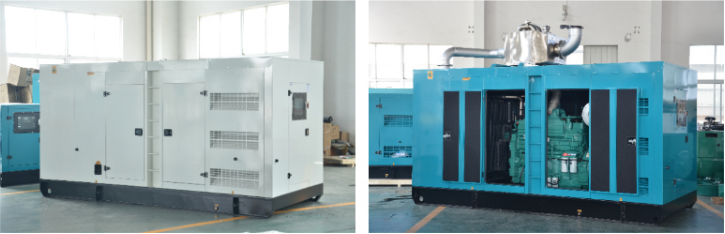

Standard container type

• Can be shipped on board directly during transportation	• The switch cabinet and control panel are respectively set on both sides of the shell for ea叩 maintenance & operation
• The mesh plate with podwer coating and inner pasted with high-density glass fiber is installed inside the shell, which is beautiful and anti-rust, and can further reduce the noise	• The air in & out louver made of the mesh plate with podwer coating and pasted with high-density glass fiber is beautiful and not easy to rust, and can further reduce the noise
• 3mm thick checkered steel plate floor is beautiful & antiskid., and is convenient for overhaul & maintenance ofthe unit	• Isolation net is designed for air inlet, exhaust outlet and muffler outlet to prevent objects from entering the unit
• Double emergency stop button set on different surfaces enables quick response to operation requirements	• The sufficient air in & out design ensure long-term and stable operation of the unit
• The independent daily fuel tank can be designed to put inside to meet requirements of continuous operation	• The drainage outlets are all connected to the outside for ea叩 operation
• The fuel filler is set on the shell to facilitate refueling	• Ceiling Lighting is equipped for easy operation

Diesel generator Details

Diesel generator Detail

Diesel generator Details

Power	180kw/225kva
Frequency	50Hz/60Hz
Voltage	380/220v(voltage can be customized)
Optional Type	Open/soundproof/trailer
Size of Open type	25009501500mm
Weight of Open type	1650kg

With Diesel Engine
Brand&model	with Cummins 6CTAA8.3-G2
Standby Power	200kw
Cylinders	6 in line arrangement
Bore*Stroke	114*135mm
Displacement	8.3L
Lubriion Oil Capacity	24L
Fuel Consumption at 100% Load	205g/kw.h
Speed Governor	Electronic

With Alternator
Optional Brands	Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust range	≤5%
Insulation Grade	H
Protection Grade	IP23

With Controller
Optional brands	Deepsea/ComAp/Smartgen

Super Silent Cummins Diesel Generator Set 6CTAA8.3G2 180Kw 225Kva

Standard equipment
· Diesel engine	· 50℃ water cooled radiator
· Alternator	· Silencer and flexible exhaust hose
· Starting batteries and battery connect wires	· Digital control panel
· Output circuit breaker	· Steel base frame

Optional equipment
· Sound proof	· Water heater
· Automatic parallel synchronizing control system	· ATS
· 50℃ water cooled radiator
