QSK60 G3 1500RMP Green Power Diesel Engine Genset V Type Cummins
2000 Kva Generator
Product Description

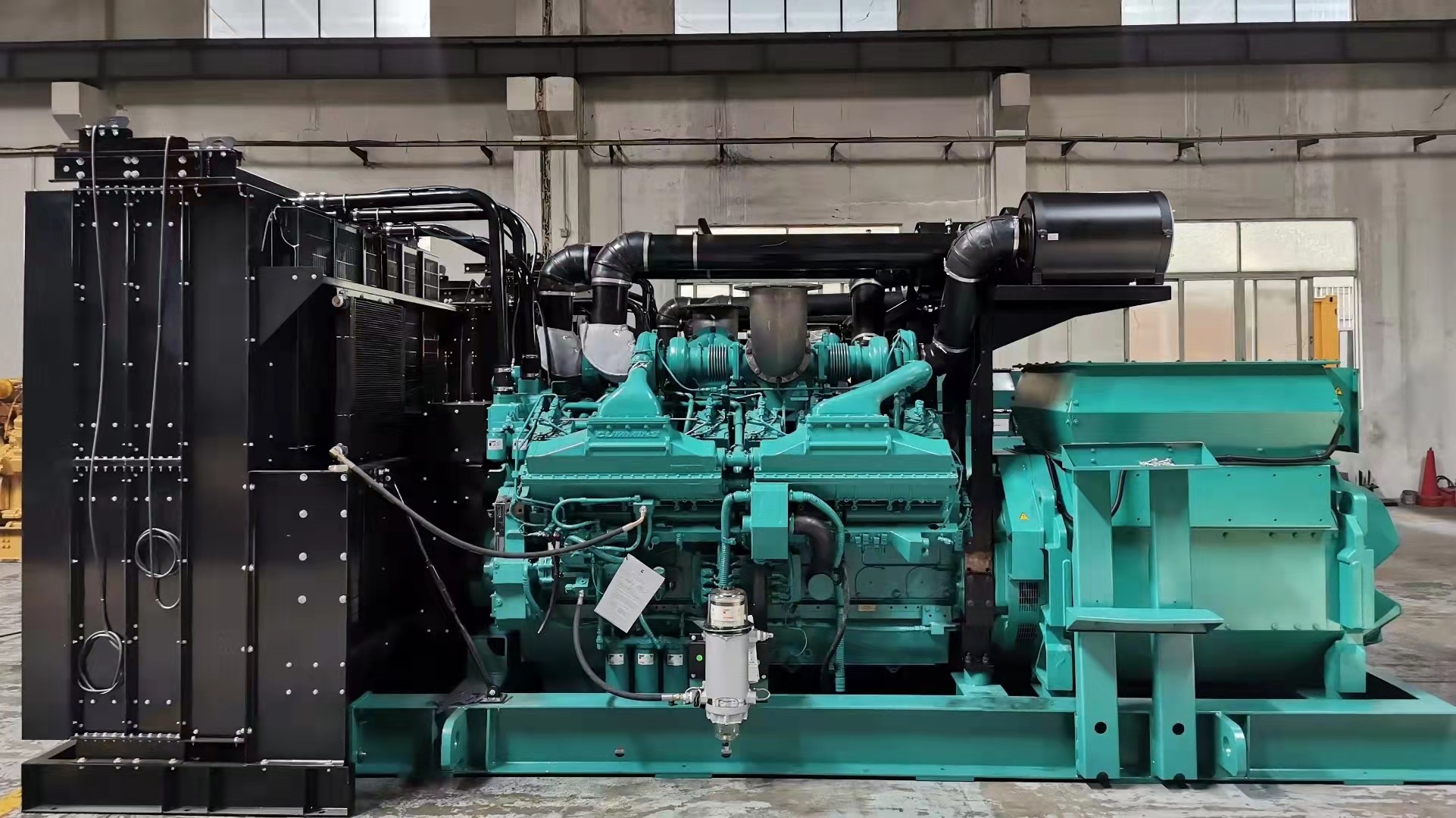

QSK60-G3 Diesel Generator
| Diesel generator Details |
| Gensets model | CLC2000GF | | Standby power | 2000KVA | | Rated Voltage(V) | 400/230 | | Rated frequency(HZ) | 50 | | Rated Speed(RPM) | 1500 | | Power Factor | 0.8(lagging) | | Dimensions(mm) (L×W×H) | 5700x2280x2500 | | Genset Weight(kg) | 10500 |
|
| With Diesel Engine |

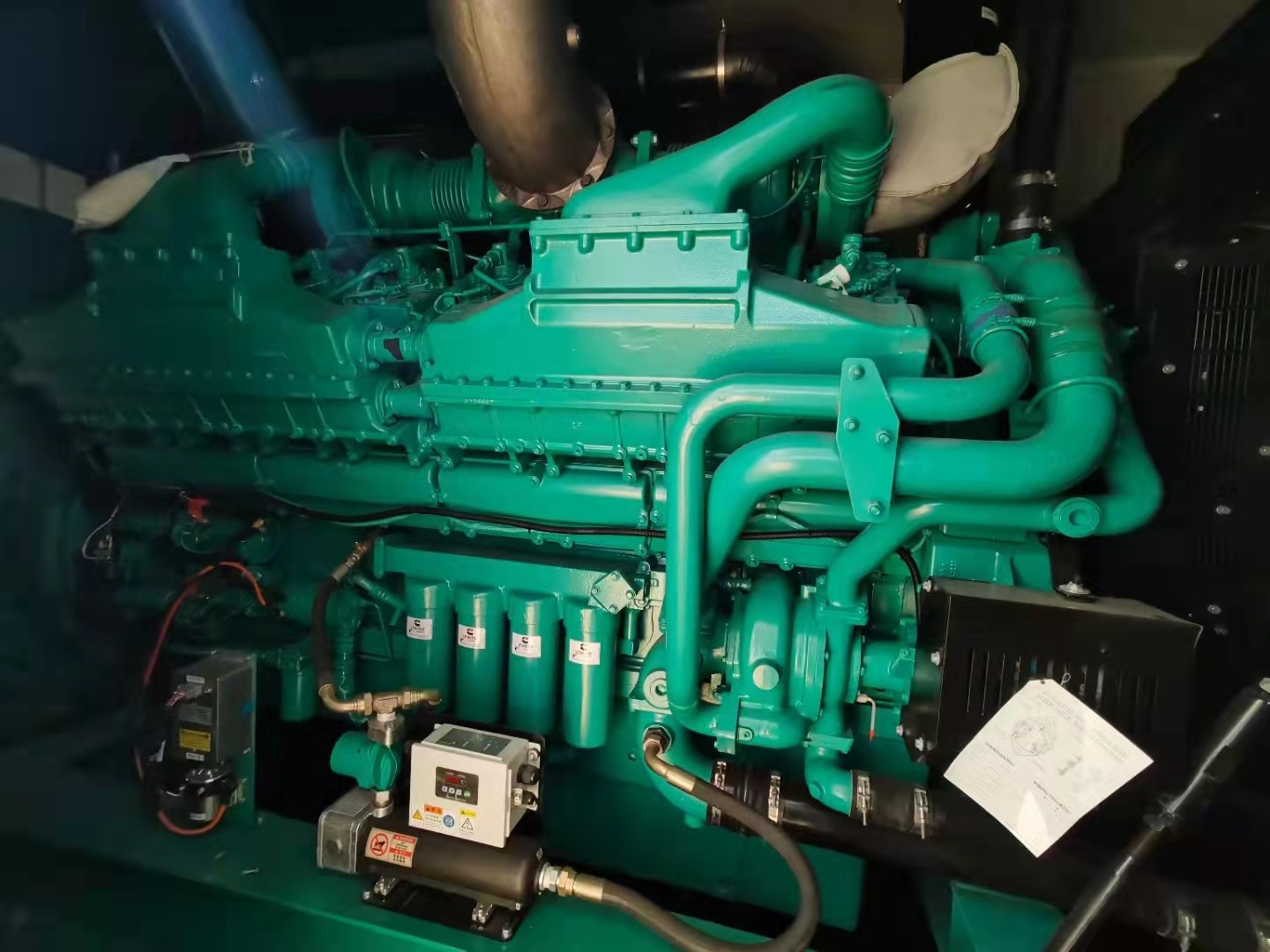

| Engine model | Cummins QSK60-G3 | | Standby power | 1760KW | | Number of Cylinders | 16 | | Cylinder arrangement | V type | | Cycle | Four stroke | | Aspiration | Turbocharged&aftercooled | | Bore×Stroke (mm×mm) | 158.8x 158.8 | | Displacement (Liter) | 60 | | Compression Ratio | 14.9:1 | | Speed Governor | Electrical Governor | | Cooling System | Forced Water Cooling Cycle | | Total lubriion system capacity (L) | 204L | | Fuel Consumption at 100% Load (g/kw.h) | 241 | | Starting Method | DC48V electrical starting |
|
| With Alternator |
| Alternator brand | Stamford | | Alternator model | PI734H1 | | Standby power | 2000KVA | | Number of Phase | 3 | | Connecting Type | 3 Phase and 4 Wires | | Number of Bearing | Single | | Protection Grade | IP21 | | Altitude | ≤1000m | | Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100%
Copper winding wire | | Insulation Class | H | | Telephone Influence Factor (TIF) | ≤50 | | THF | ≤2% | | Voltage Regulation, Steady State | ≤±1% | | Transient State Voltage | ≤-15%~+20% |
|
|
|
|
Generator Supply Scope
| 1. Engine: | Brand-new engine. |
| 2. Alternator: | Brand new brushless alternator, single bearing, IP23, H insulation
class. |
| 3. Base Frame: | Heavy duty steel channel base frame. |
| 4. Radiator: | With safety guard. |
| 5. Vibration Damper | Vibration damper between Engine/Alternator and base frame |
| 6. Breaker: | 3-pole output manual circuit breaker as standard, 4 poles for
option |
| 7. Controller: | DSE6120, DSE7320, DSE8610 and other deepsea models, Comap MRS10,
MRS16, AMF20, AMF25 for option. |
| 8. Silencer: | Heavy duty industrial type silencer with flexible bellow,elbow. |
| 9. Battery: | Varta Brand,high capacity sealed maintenance free battery c/w
battery cables. |
| 10. Fuel Tank: | 8 hours base fuel tank |
| 11. Tool Kits & Manuals: | Standard tool kits and complete operation/maintenance/manuals for
Generator/Engine/Alternator/control panel, etc. |
Our gensets compliance with all main standards, such as : GB/T2820,
ISO8528,IEC34, CE, EPA Tier4standards
Prime output power: 8kw-1600 kw (10kva-1600kva)
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.
Phase/connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Company Information
Jvh Industry and Trading Co.,Ltd specializes in distributing engine assembly and engine generator
set to more than 20 countries under 10 year's development.
JVH focus on providing genuine parts and top aftermarket spare
parts ,as well as providing professional after sales service , so
it receives good reputation among clients all over the world. It
will keep such spirit and improve its service to be the excellent
distributor in diesel engine parts.
Now it has strong and stable supplying system by investing big
factories of cylinder blocks, cylinder heads, crankshafts,
camshafts, pistons, cylinder liners etc.
Our Services
Our professional engineers are available to provide on-site
installation overseas.
